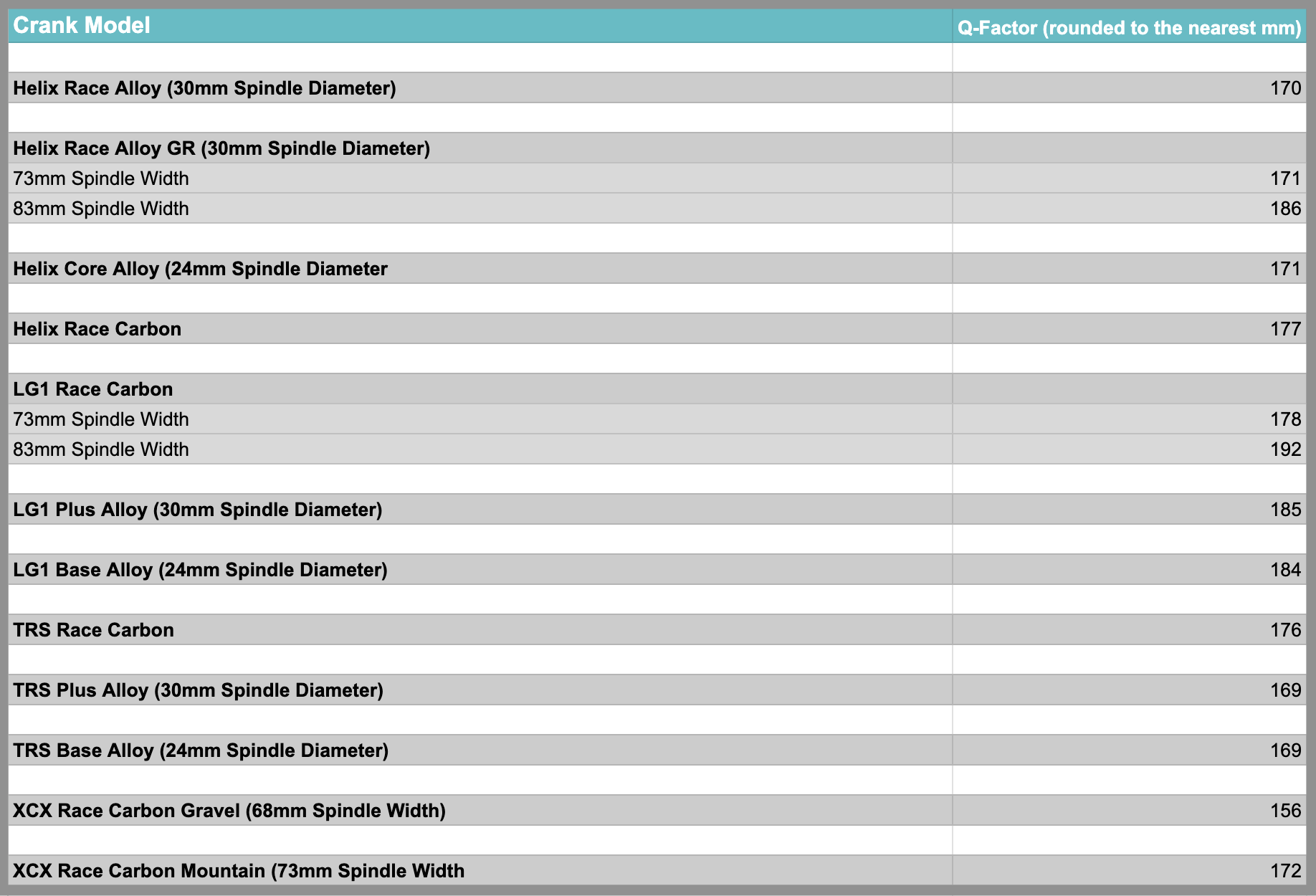

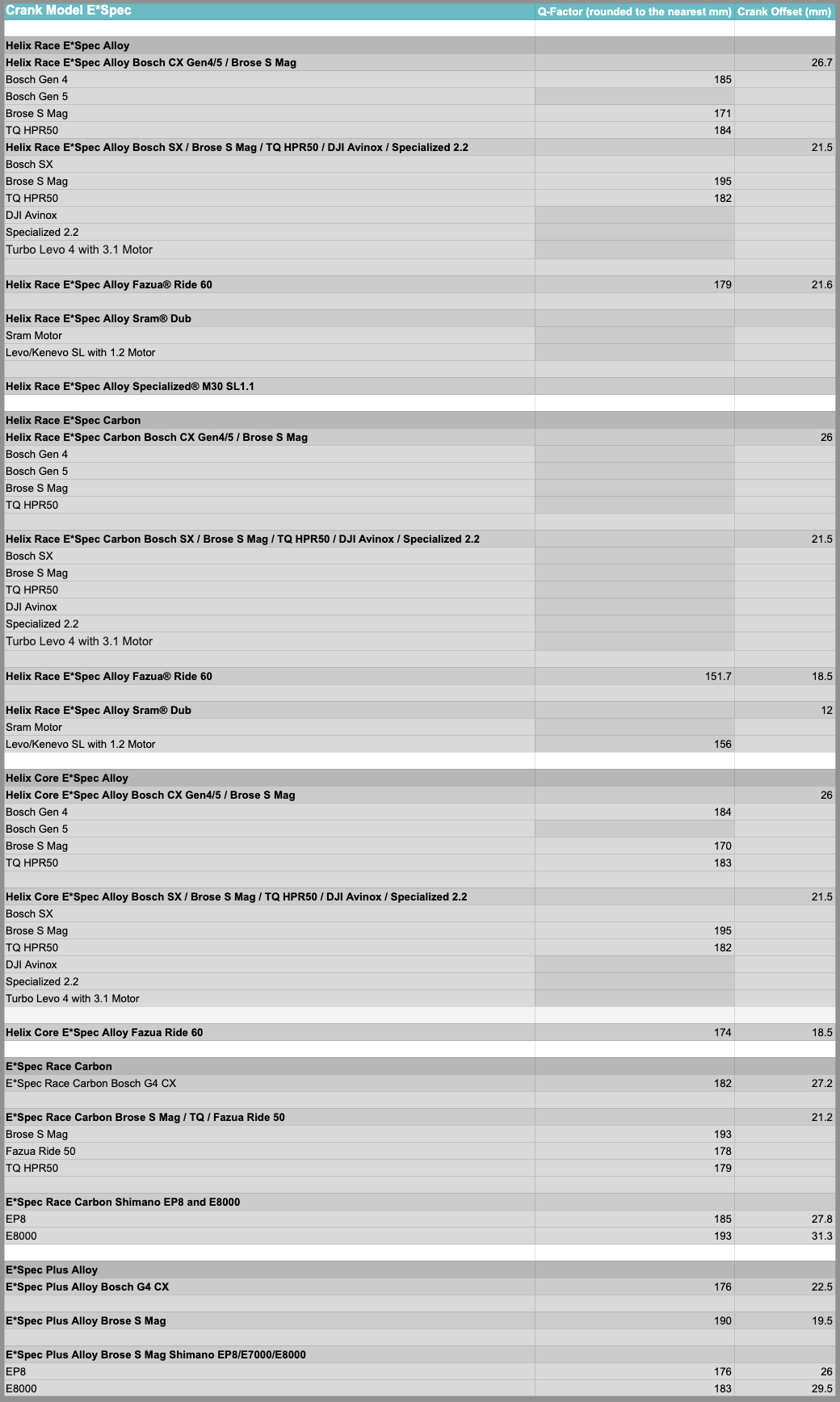

Note: This list shows Q-Factors for most of our current crank models; we have produced multiple generations of crank arms and Q-factor/Offset can vary slightly. If you dont see your exact model represented or have any additional questions regarding crank fitment please reach out to our support team. We will do our best to assist ASAP.
The Diagram at the bottom of this page shows how our Q-factors/Offsets are measured.
Adjustable chainline cranks - Offset indicates max offset. Offset may also be reduced by up to 3mm by rearranging spacers.
Or click pdf below to download
