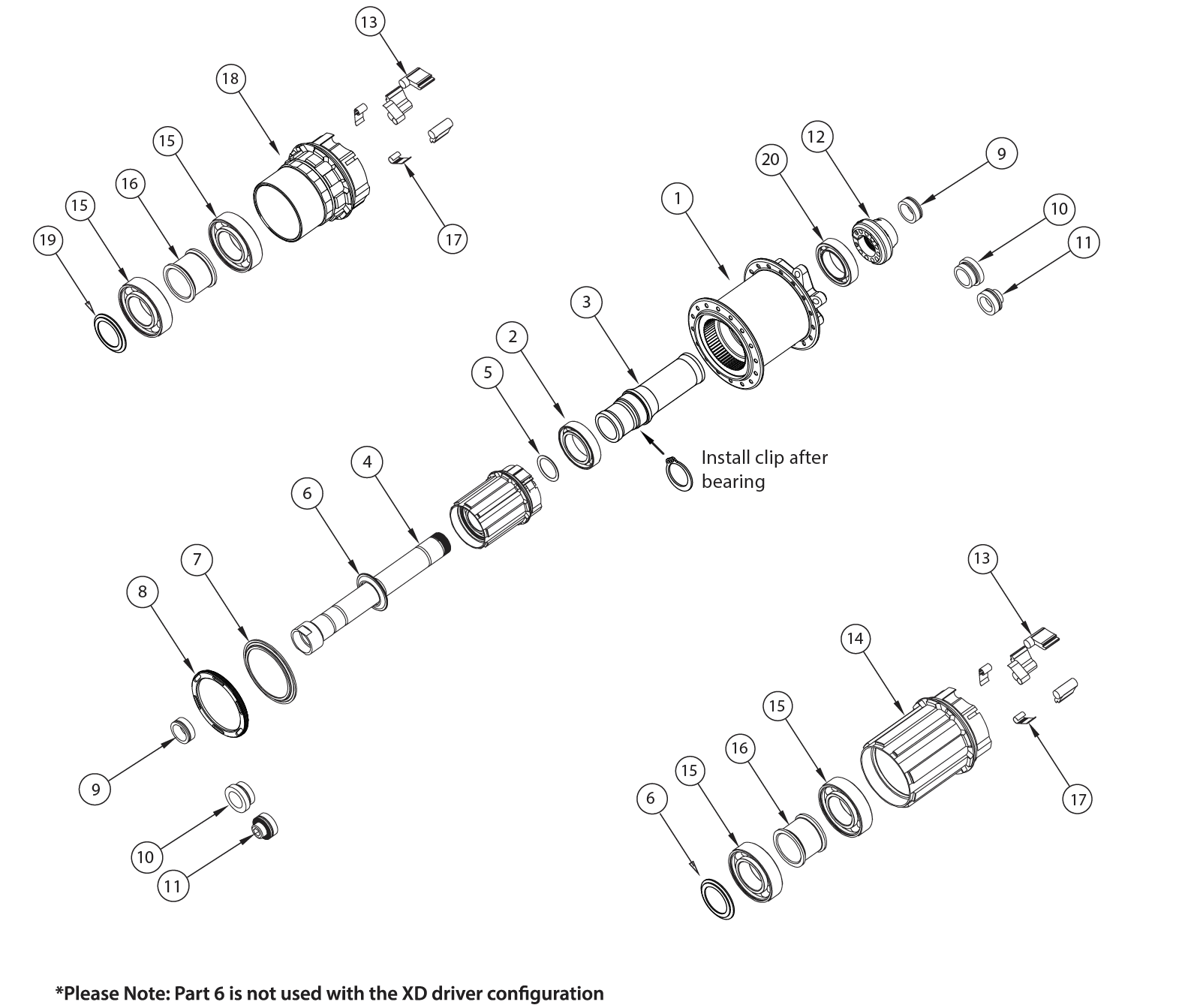

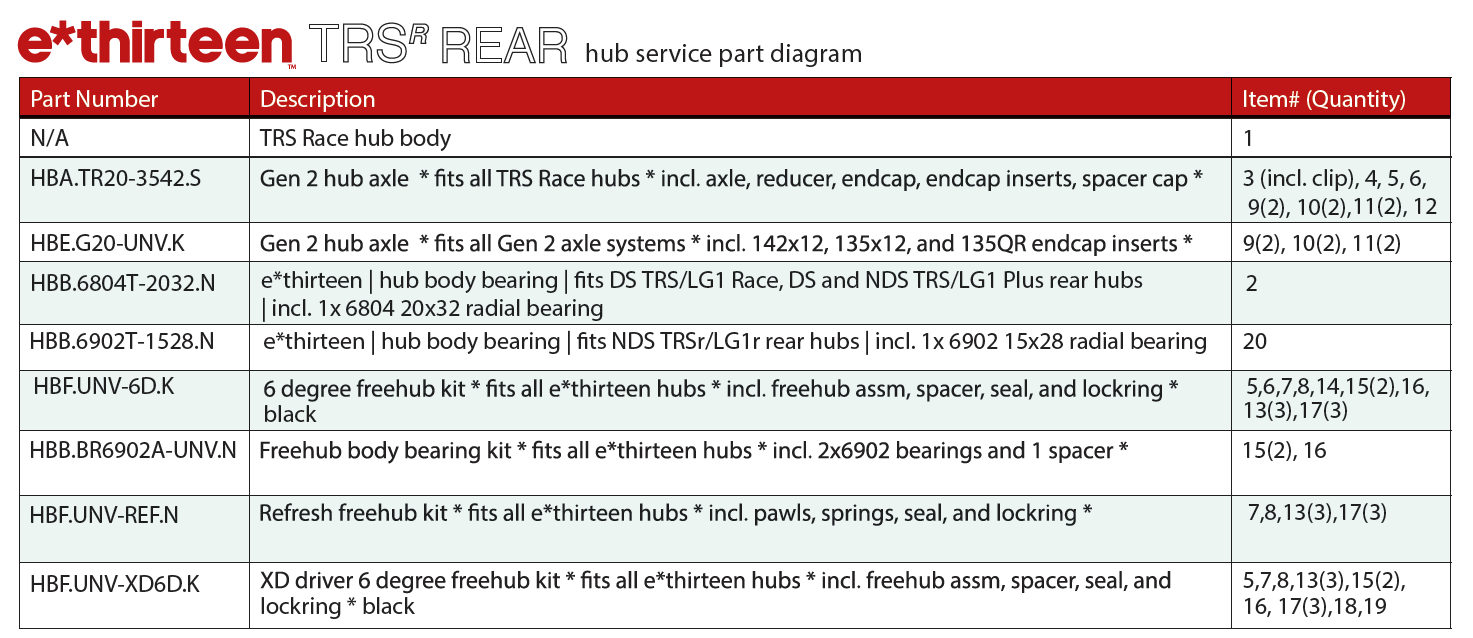

Hub - TRSr Rear Hub - Gen 1 carbon shell service part diagram (2015)
Charlie
January 28, 2025 21:50
Updated
You can also find step by step how to guides here:
http://service.bythehive.com/c/Hubs_and_Wheels
HB-TRSr-rear_Service-Part-Diagram_B.pdf
900 KB
Download
