There are a large number of BB standards being used across the mountain, road, and gravel spectrum of bikes. e*thirteen makes BB's for all of the most common standards but there are some standards which we do not produce a compatible components for.
Bottom bracket standards we support:
- BSA Threaded: The most common threaded standard found across all brands. e*thirteen makes threaded BB's for 68mm (gravel), 68/73mm (mountain), and 83mm (Mountain DH).
- BB 86.5/92/107: The most common pressfit standard. e*thirteen's BB92 bottom brackets will fit frames with these shell widths. 86.5 (road), 92(mtn), and 107(mtn DH).
- PF30 and BB30: PF30 and BB30 are less common press fit standards and we make BB for both these standards.
- T47 Threaded: T47 is a newer standard and not all that common. We do make a BB for the T47 Standard.
Bottom bracket standards we do not support:
- BB90/BB95 (Trek)
- BB386EVO
- BB392EVO
- BBRight
- OSBB
You can find some more specifics here:
This guide shows how to assemble and install all generations of APS adjusters. Even if the outer ring of your APS adjuster looks different than the version shown here, this guide still applies to your system as well.

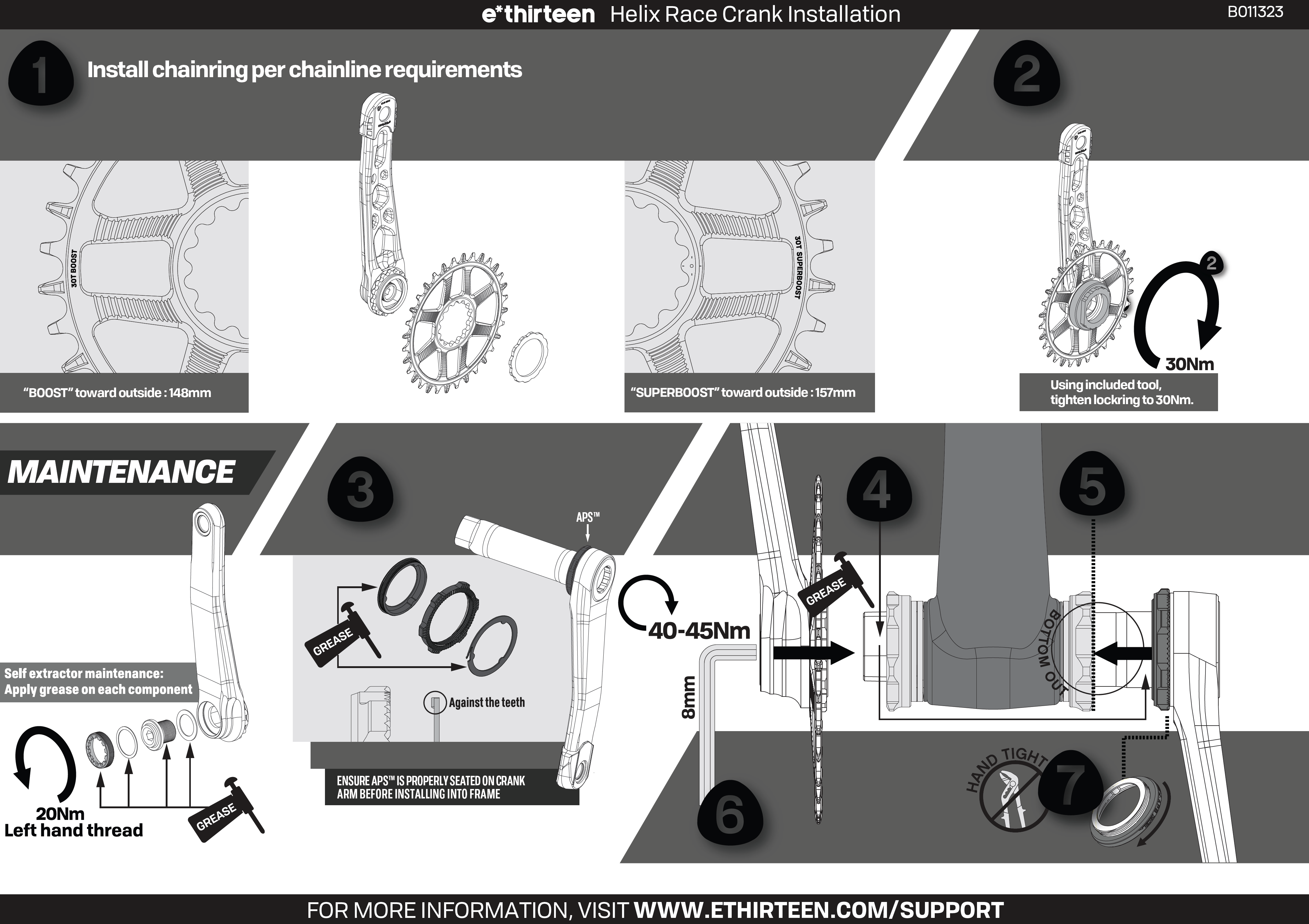

How to install TRS and LG1 series cranks using APS adjuster
Crankset Setup
For TRS/LG1 Cranks with Chainline Adjustment

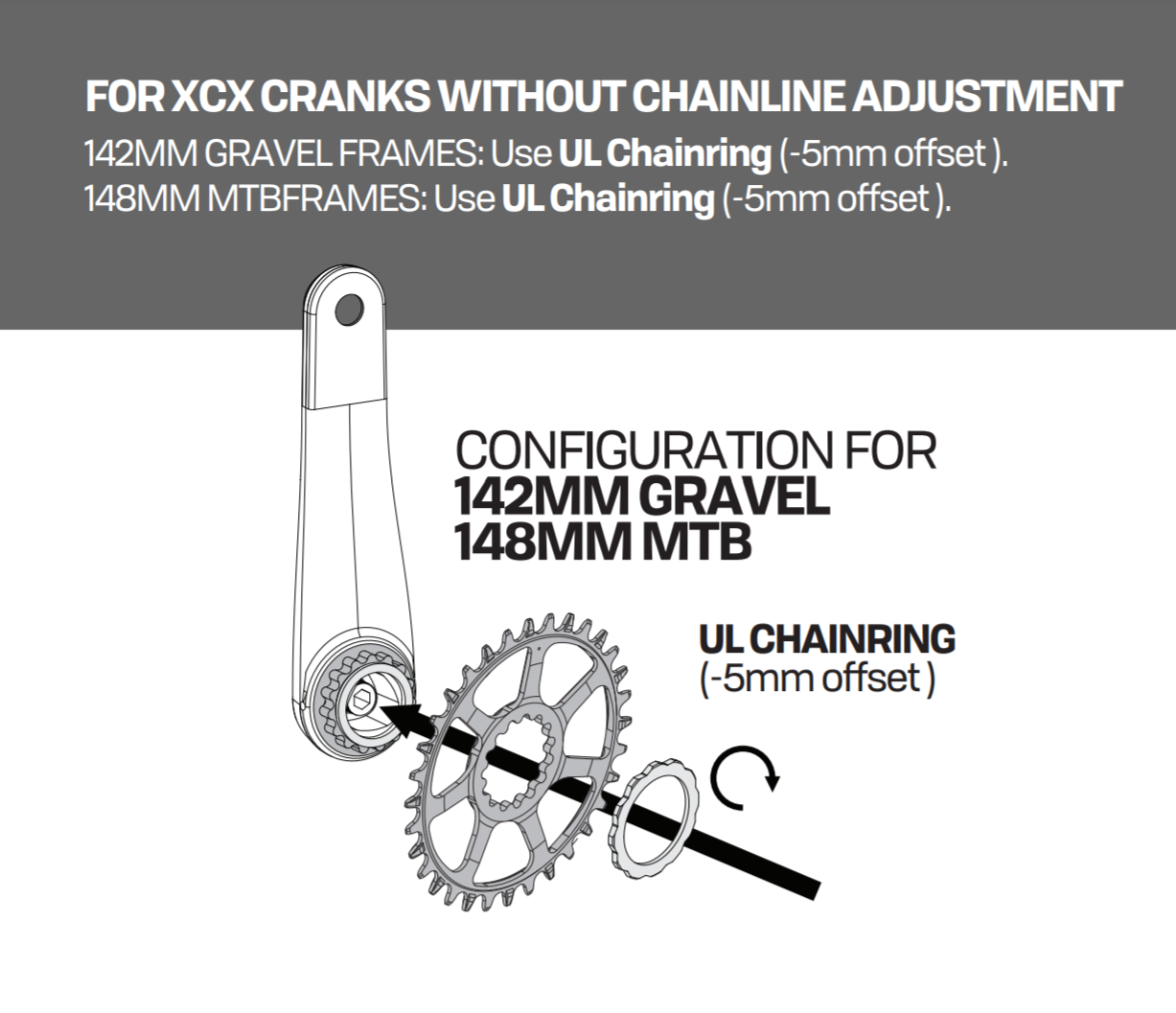

For XCX Cranks without Chainline Adjustment
Install Chainring on Drive Side Crank Arm and APS Adjuster on non-drive side

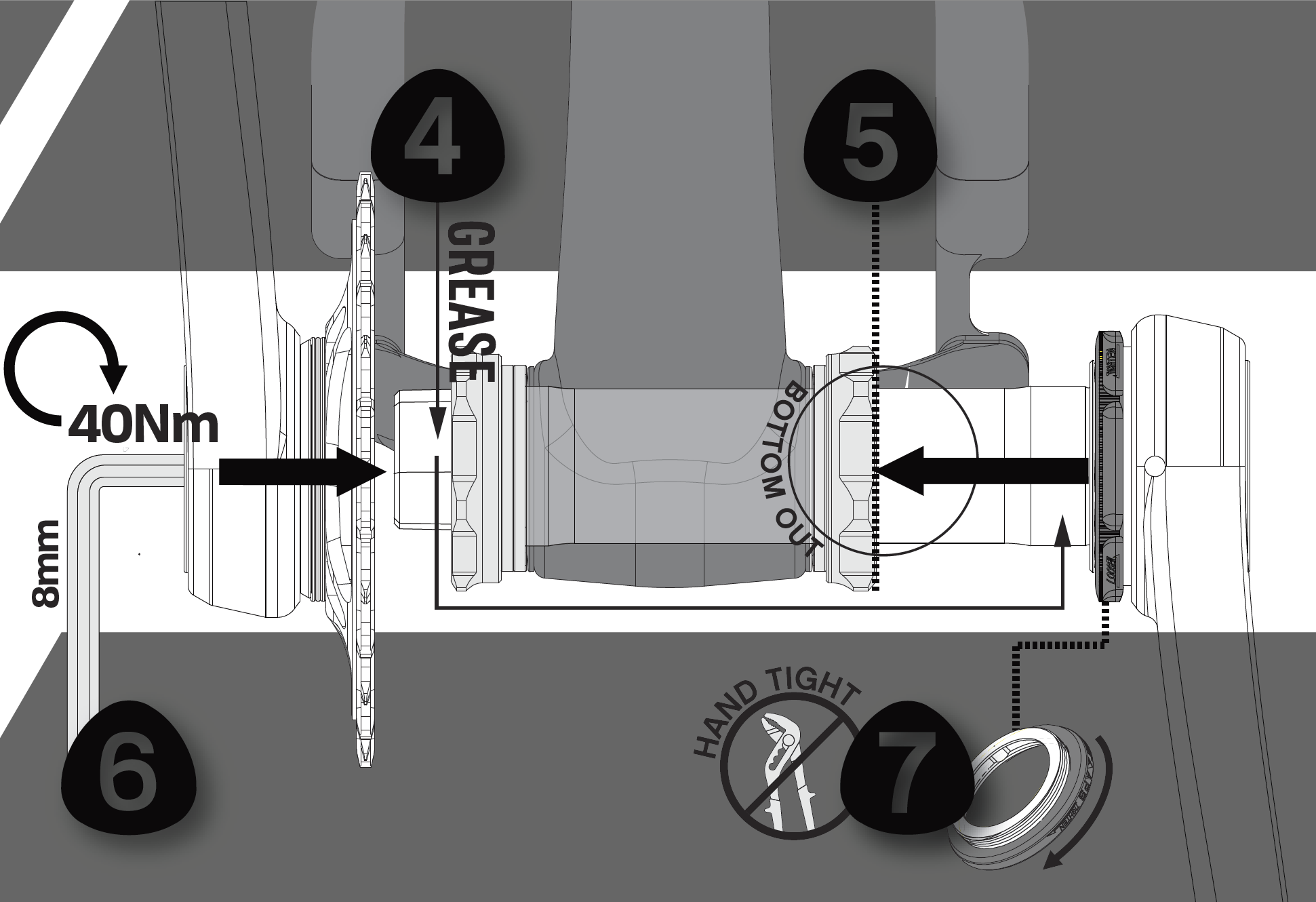

Install and tighten crankset, remove BB Clearance with APS
MTB Bottom Bracket Setup (For XCX Gravel see below)

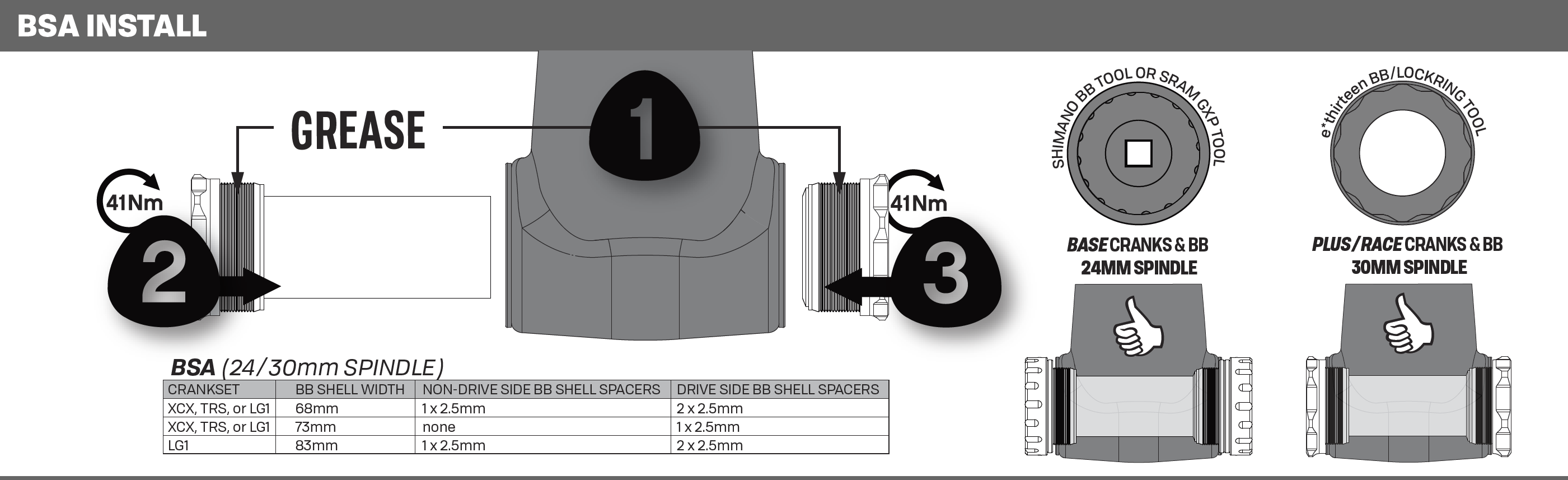

BSA (68mm/73mm/83mm Shell Width)

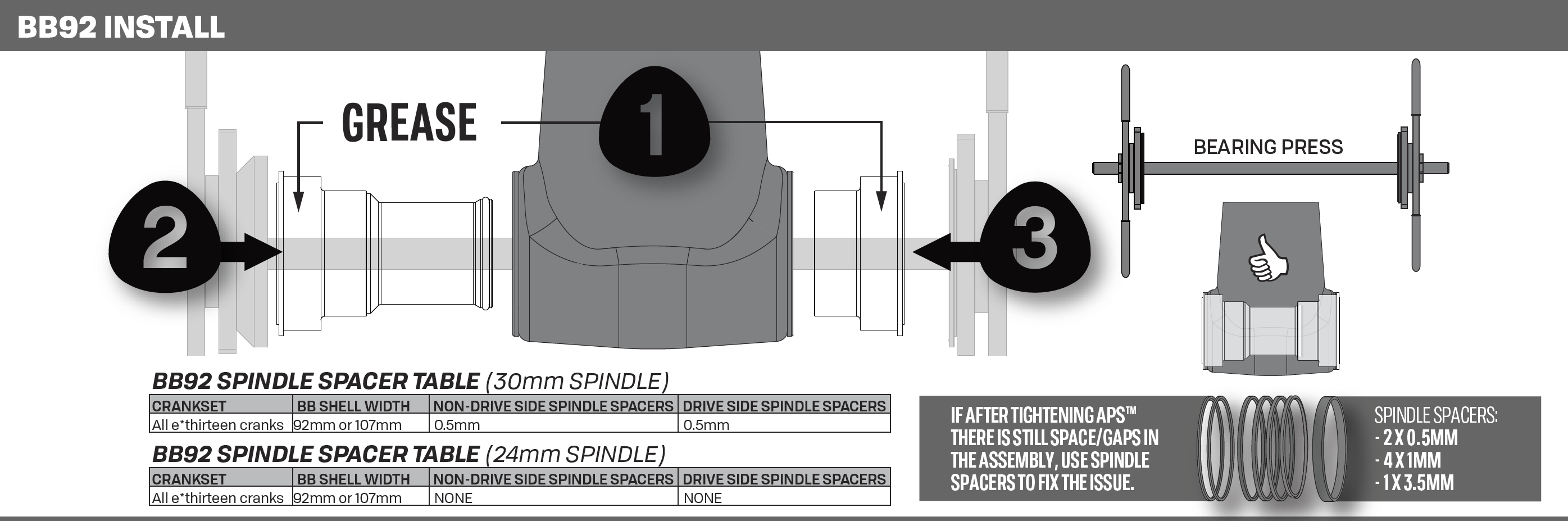

BB92

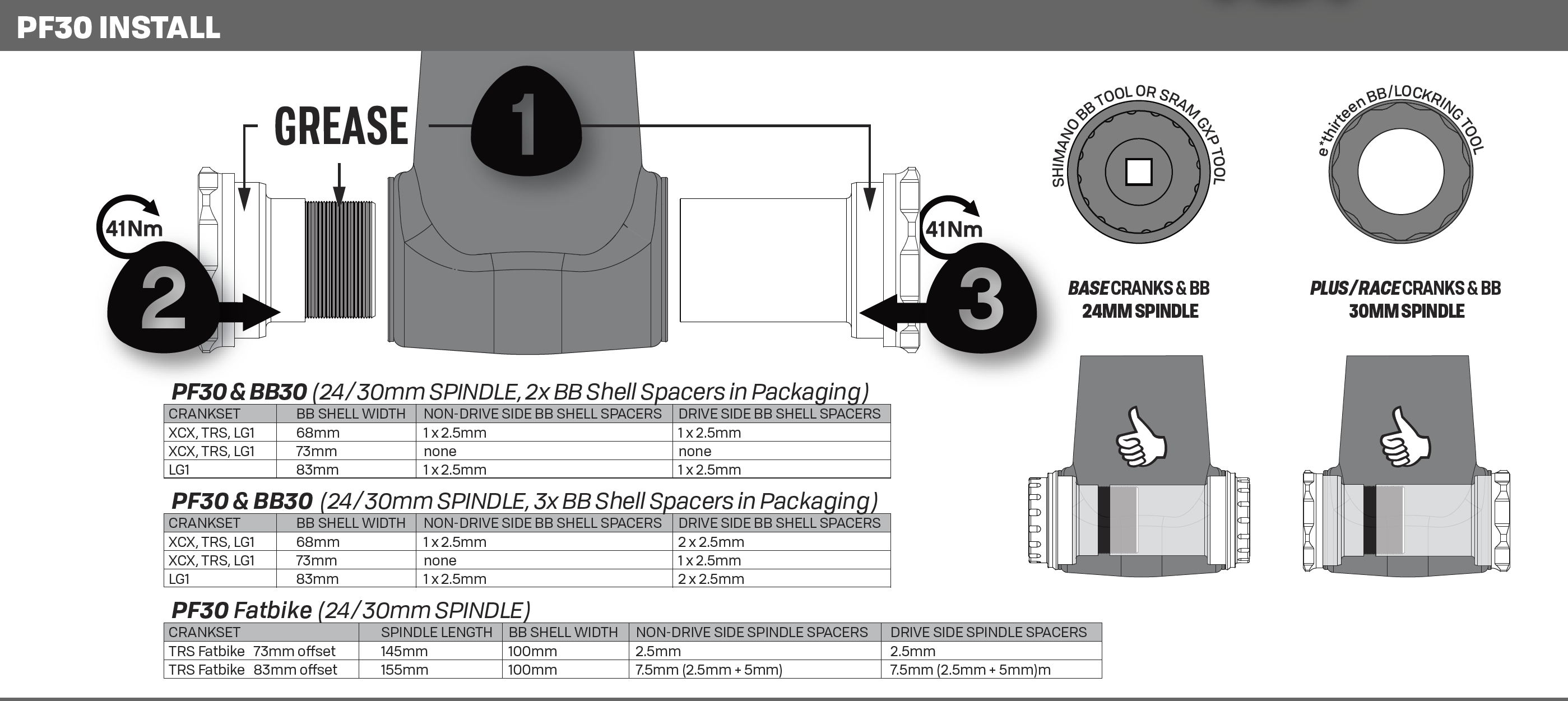

PF30

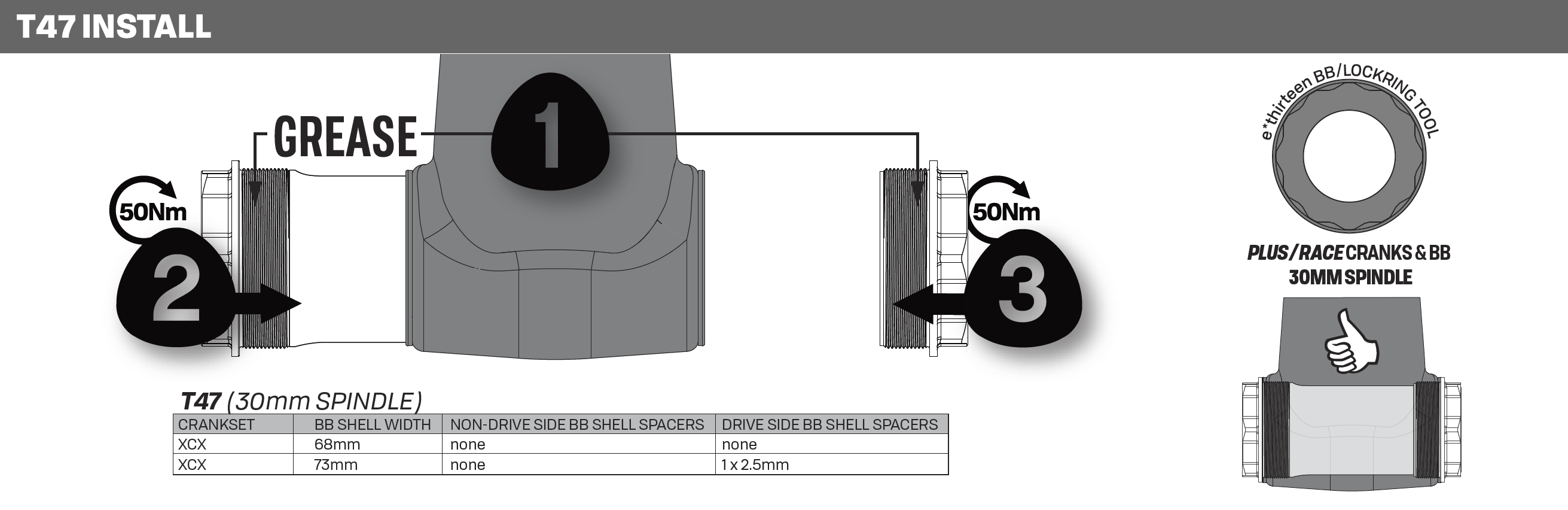

T47
XCX Gravel Bottom Bracket Setup

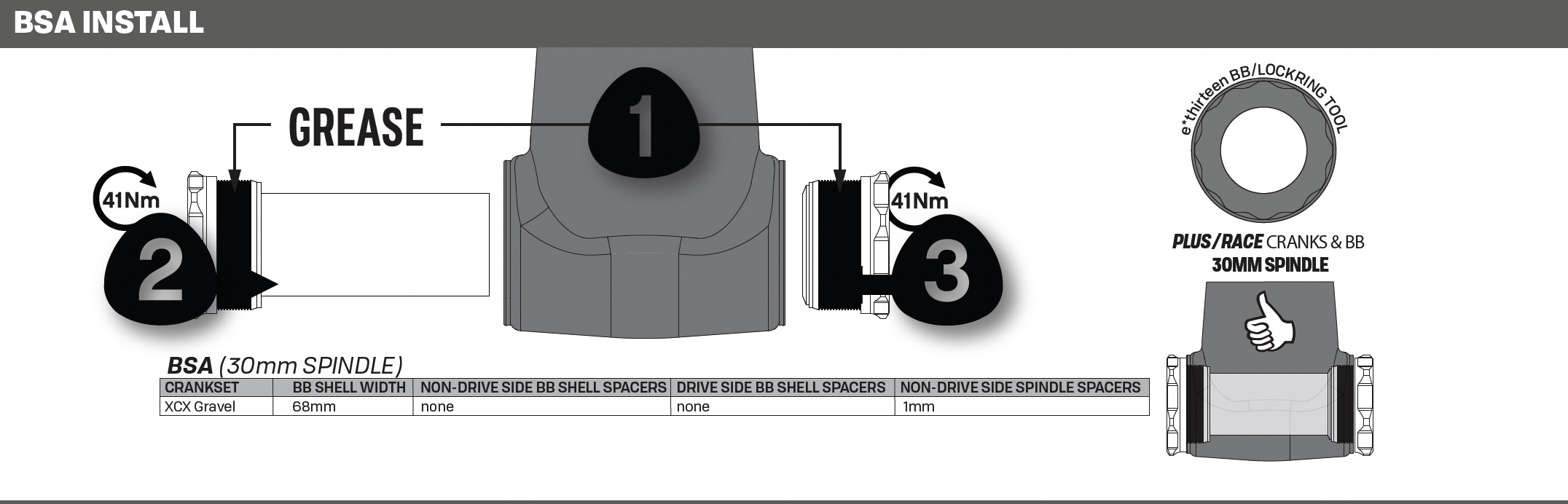

BSA
BB92
BB30 / PF30

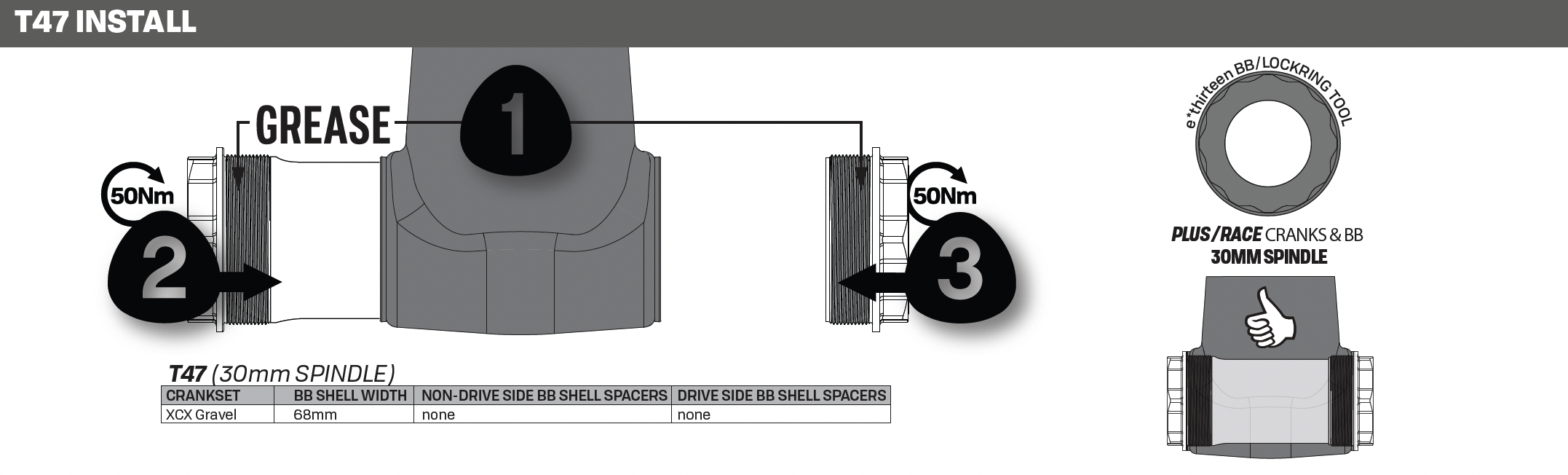

T47
Or click the link below to download the complete Manual in PDF Format.
How to install threaded bottom brackets

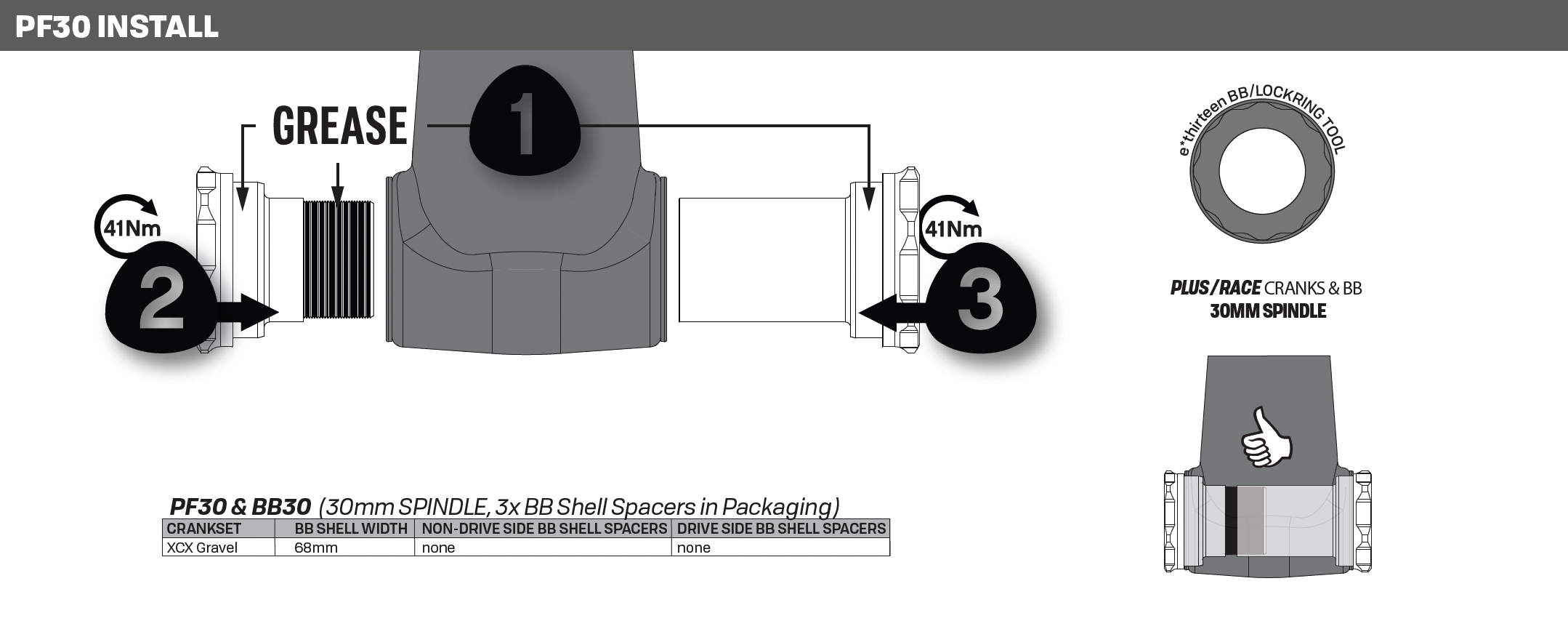

How to install PF30 bottom brackets

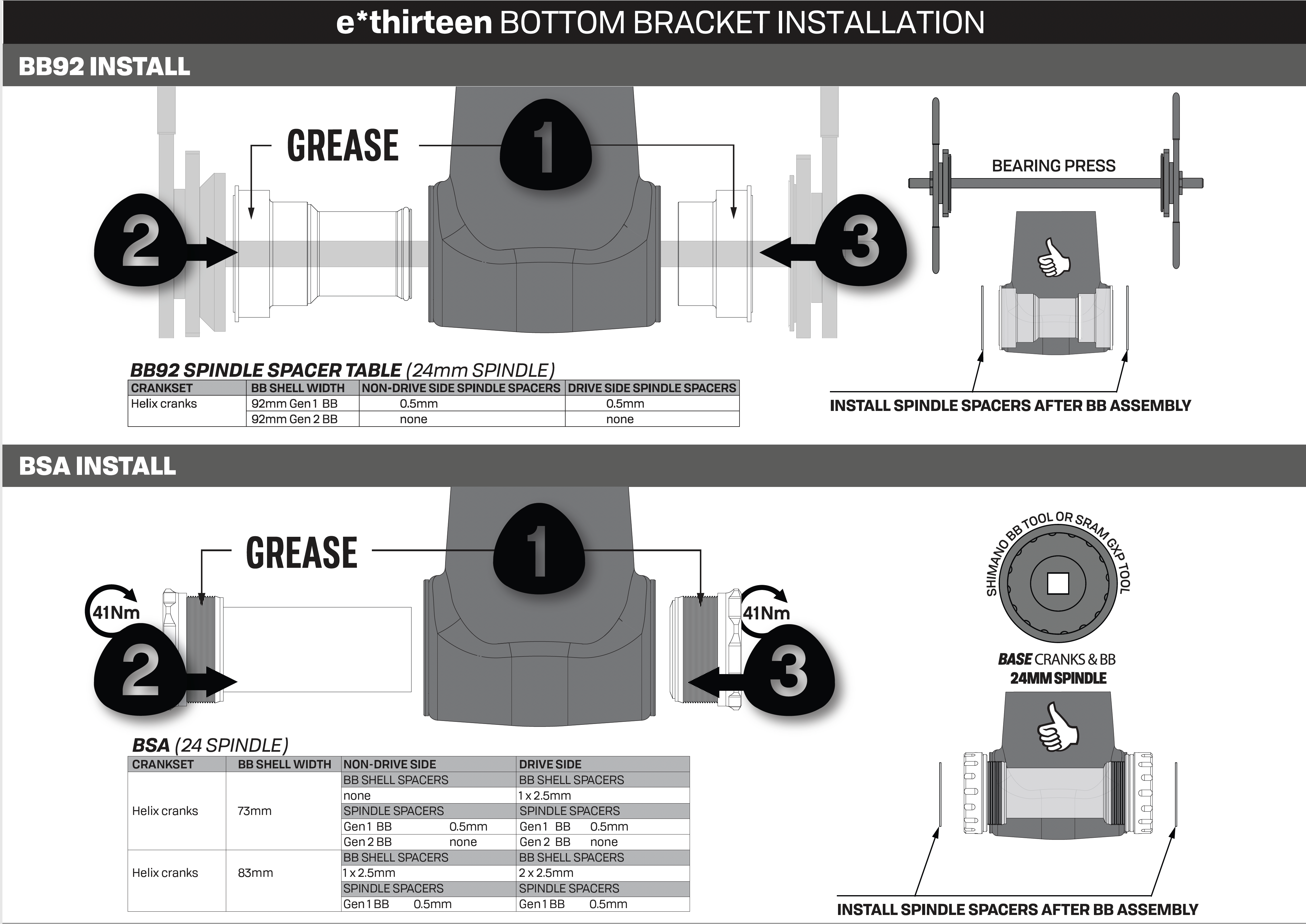

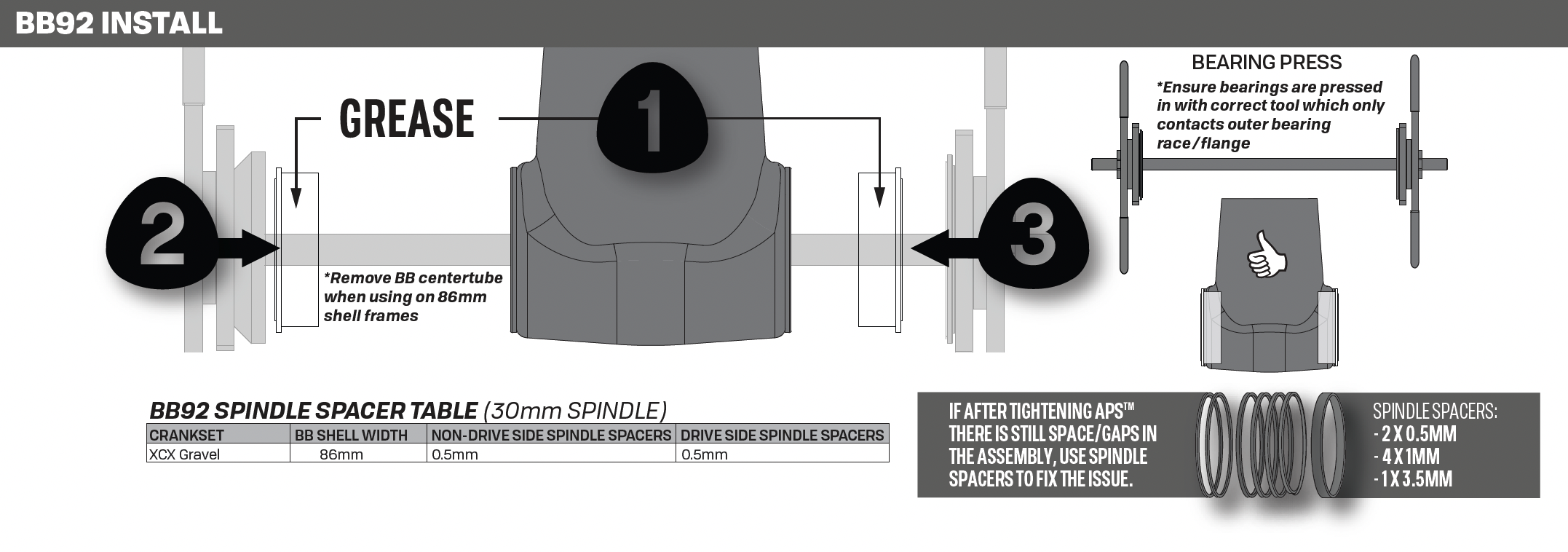

How to install BB92 Bottom Brackets
Bottom Bracket Setup
BSA (68mm/73mm/83mm Shell Width)
*For BSA 68mm shell with XCX Gravel cranks, use 1x2.5mm spacer drive side, no spacers non-drive side
BB92
PF30
T47
Or Click below to download a PDF Manual
How to install BB30 bottom brackets
How to Install LG1 and XCX Cranks that use a wave washer and spindle spacer pre-load system
How to install and remove TRS crank spiders and integrated rings.
How to replace gen 3 BB bearings
